Medical Equipment
HomeMedical Equipment

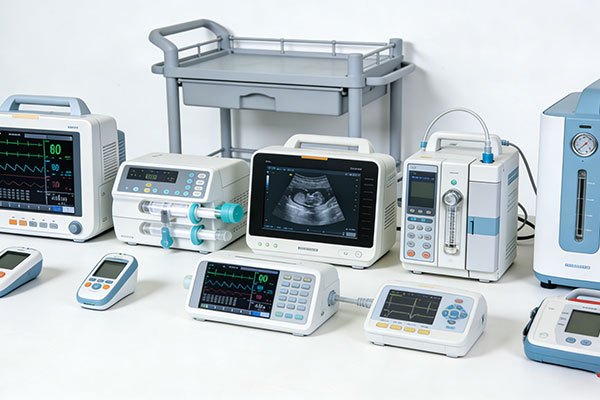

Medical Device Power Supply Applications
Low Ripple Adapter, Compliant with Class B Standards, for Medical Devices
Medical devices have stringent requirements for power supply stability, safety, and electromagnetic compatibility that far exceed those of ordinary electronic products. From patient monitors to diagnostic equipment, from rehabilitation devices to portable medical terminals — the precise operation of every medical device relies on medical-grade power adapters. Low ripple, low leakage current, and high reliability are the core hallmarks of medical power supplies. Below we outline power application solutions and selection references for various types of medical devices.
I. Core Requirements of Medical Devices for Power Supplies
| Requirement Dimension | Specific Requirement | Impact on Power Supply |
|---|---|---|
| Low Ripple Noise | Ripple noise typically required ≤200mVp-p (≤50mVp-p for some devices) | Ensures sensor signals are interference-free and measurements are accurate |
| Low Leakage Current | Patient leakage current ≤100µA (stricter for BF/CF type devices) | Ensures patient safety and prevents electric shock risk |
| EMC | Complies with IEC 60601-1-2 medical EMC standard | Strong anti-interference capability, does not affect other medical equipment |
| High Reliability | MTBF ≥ 50,000 hours, redundant design | Ensures long-term continuous operation of equipment |
| Isolation Grade | 2 × MOPP (Means of Patient Protection) | Provides dual patient protection |
| Wide Voltage Input | 100-240V AC wide voltage | Adapts to global power grids, strong universality |
| Enclosure Protection | UL94 V0 flame retardant, anti-fog, anti-dust | Adapts to complex hospital environments |
II. Medical Device Power Application Overview
| Device Category | Typical Products | Recommended Power | Recommended Voltage/Current | Power Supply Key Points |
|---|---|---|---|---|
| Monitoring Equipment | ECG monitors, fetal monitors, multi-parameter monitors, etc. | 12-36W | 12V1A / 12V2A / 12V3A / 24V1A / 24V1.5A | Low ripple, low leakage, medical grade isolation |
| Diagnostic Equipment | ECG machines, ultrasound systems, blood pressure monitors, etc. | 6-24W | 12V1A / 12V1.5A / 12V2A | High precision, anti-interference |
| Laboratory Equipment | Hematology analyzers, biochemistry analyzers, urinalyzers, etc. | 12-48W | 12V1.5A / 12V2A / 24V1.5A / 24V2A | Stable, reliable, EMC compliant |
| Therapeutic Equipment | Physiotherapy units, IF therapy devices, infrared therapy devices, etc. | 12-48W | 12V1A / 12V2A / 12V3A / 24V2A | Safety isolation, overload protection |
| Rehabilitation Equipment | Rehabilitation trainers, electrical stimulators, massage therapy devices, etc. | 12-36W | 12V1.5A / 12V2A / 24V1.5A | Safe, reliable, medical standards compliance |
| Portable Medical | Portable ECG, handheld pulse oximeters, mobile medical terminals, etc. | 5-18W | 5V1A / 5V2A / 12V1A / 12V1.5A | Compact size, battery compatibility |
| Medical Displays | Diagnostic displays, surgical displays, etc. | 18-36W | 12V1.5A / 12V2A / 12V3A / 24V1.5A | High stability, low radiation |
| Laboratory Equipment | Centrifuges, incubators, shakers, etc. | 12-48W | 12V1A / 12V2A / 12V3A / 24V1A / 24V2A | Long-term operation, stable and reliable |
III. Monitoring Equipment Power Applications
3.1 ECG Monitors
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Bedside Monitors | 15-30W | 12V2A / 12V2.5A | Low ripple (≤50mVp-p), low leakage current |
| Portable Monitors | 10-18W | 12V1A / 12V1.5A | Compact size, battery compatible |
| Telemetry Monitors | 8-15W | 12V1A | Low power consumption, wireless compatibility |
| Fetal Monitors | 12-24W | 12V1.5A / 12V2A | Clean signal, no interference |
3.2 Multi-parameter Monitors
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Multi-parameter Monitors | 20-36W | 12V2A / 12V3A | Stable and reliable power for multiple modules |
| Transport Monitors | 12-20W | 12V1.5A | Shock-resistant design, portable power supply |
Application scenarios: ICUs, operating rooms, emergency departments, general wards, out-of-hospital transport
IV. Diagnostic Equipment Power Applications
4.1 ECG Machines
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Tabletop ECG | 12-24W | 12V1.5A / 12V2A | Low ripple, 50Hz interference rejection |
| Portable ECG | 8-15W | 12V1A | Compact, battery compatible |
| Holter Monitors | 3-6W | 5V1A | Ultra-low power, long-term recording |
4.2 Ultrasound Systems
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Portable Ultrasound | 24-48W | 12V2A / 12V3A / 24V2A | High power stable output |
| Handheld Ultrasound | 8-15W | 12V1A | Compact, battery compatible |
| Black & White B-mode | 24-36W | 12V2A / 12V3A | Stable image, no interference |
4.3 Blood Pressure Monitors
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Tabletop BP Monitors | 6-12W | 12V0.5A / 12V1A | Stable air pump power supply |
| Ambulatory BP Monitors | 3-6W | 5V1A | Low power, long-term recording |
| Medical BP Monitors | 6-12W | 12V0.5A / 12V1A | Accurate measurement, low ripple |
Application scenarios: Cardiology, physical examination centers, emergency departments, community healthcare, primary health centers
V. Laboratory Equipment Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Hematology Analyzers | 20-36W | 12V2A / 12V3A / 24V1.5A | Stable, reliable, long-term operation |
| Biochemistry Analyzers | 20-48W | 12V2A / 12V3A / 24V2A | High power, stable temperature control |
| Urine Analyzers | 12-24W | 12V1.5A / 12V2A | Low noise, stable output |
| Coagulation Analyzers | 15-30W | 12V1.5A / 12V2A / 12V2.5A | High precision, low ripple |
| Blood Gas Analyzers | 15-30W | 12V1.5A / 12V2A / 12V2.5A | Fast response, stable and reliable |
| Centrifuges | 12-36W | 12V2A / 12V3A | Supports motor startup current |
Application scenarios: Clinical laboratories, pathology, physical examination centers, labs, blood banks
VI. Therapeutic Equipment Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Physiotherapy Units | 12-36W | 12V1.5A / 12V2A / 24V1.5A | Safety isolation, BF-type applied part |
| IF Therapy Devices | 15-30W | 12V1.5A / 12V2A | Anti-interference, stable output |
| Infrared Therapy | 12-48W | 12V2A / 12V3A / 24V2A | High power, overload protection |
| Electroacupuncture | 6-12W | 12V0.5A / 12V1A | Low voltage, safe and reliable |
| Interferential Therapy | 15-30W | 12V1.5A / 12V2A | Low ripple, stable therapeutic waveform |
Application scenarios: Rehabilitation, physiotherapy, pain management, TCM, sports medicine
VII. Rehabilitation Equipment Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Rehabilitation Trainers | 18-36W | 12V2A / 12V3A / 24V1A / 24V1.5A | Stable motor drive |
| Electrical Stimulators | 12-24W | 12V1.5A / 12V2A | Low ripple, pure stimulation waveform |
| Massage Therapy Devices | 12-30W | 12V1.5A / 12V2A / 12V2.5A | Safety isolation, overload protection |
| Limb Rehabilitation Devices | 15-30W | 12V1.5A / 12V2A / 12V2.5A | Long-term operation |
| Walkers / Electric Wheelchairs | 24-60W | 24V1A / 24V2A / 24V2.5A | High power, battery charging management |
Application scenarios: Rehabilitation medicine, geriatrics, neurology, community rehabilitation centers
VIII. Portable Medical Device Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Portable ECG | 8-15W | 12V1A | Compact size, battery compatible |
| Handheld Pulse Oximeters | 2-5W | 5V1A | Ultra-low power, USB powered |
| Mobile Medical Terminals | 10-18W | 12V1A / 12V1.5A | Stable data acquisition |
| Portable Infusion Pumps | 6-12W | 12V0.5A / 12V1A | High precision, low power consumption |
| Portable Oxygen Concentrators | 24-60W | 12V3A / 24V2A / 24V2.5A | High power, battery compatible |
| Home Ventilators | 18-48W | 12V2A / 12V3A / 24V2A | Low noise, long-term operation |
Application scenarios: Home healthcare, community care, emergency scenes, out-of-hospital transport, primary care
IX. Medical Display Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Diagnostic Displays | 18-30W | 12V2A / 12V2.5A | High stability, low radiation |
| Surgical Displays | 20-36W | 12V2A / 12V3A | Anti-interference, meets operating room standards |
| Consultation Displays | 24-36W | 12V2A / 12V3A | Long-term operation, stable and reliable |
Application scenarios: Radiology, ultrasound, operating rooms, consultation centers, PACS systems
X. Laboratory Equipment Power Applications
| Device Type | Typical Power | Recommended Power Supply Specs | Power Requirements |
|---|---|---|---|
| Incubators | 12-36W | 12V1.5A / 12V2A / 24V1.5A | Long-term operation, stable temperature control |
| Shakers/Mixers | 12-24W | 12V1.5A / 12V2A | Stable motor drive |
| Microscopes | 6-15W | 12V0.5A / 12V1A | Low ripple, stable light source |
| Water Baths | 12-36W | 12V1A / 12V2A / 12V3A | Stable heating, long-term operation |
Application scenarios: Clinical labs, pathology, research labs, biotech companies
XI. Medical Power Certification Standards
| Standard | Scope | Key Requirements |
|---|---|---|
| IEC 60601-1 | Basic safety and essential performance of medical electrical equipment | 2×MOPP isolation, low leakage current |
| IEC 60601-1-2 | EMC for medical electrical equipment | EMC immunity, radiated emission limits |
| GB 9706.1 | Chinese medical electrical equipment safety standard | Basic safety and essential performance |
| Class B | Radiated emission limits | Suitable for residential and medical environments |
XII. Power Selection Reference for Different Scenarios
Scenario 1: ICU Monitoring Equipment
Equipment: 4×ECG monitors, 2×multi-parameter monitors, 4×infusion pumps
Recommended Power Supply: 4×12V2A + 2×12V3A + 4×12V1A
Key Selection Points: Compliant with IEC 60601-1, 2×MOPP isolation, low leakage current, MTBF≥50,000 hours
Scenario 2: Laboratory Equipment
Equipment: 1×hematology analyzer, 1×biochemistry analyzer, 1×centrifuge, 2×microscopes
Recommended Power Supply: 1×12V3A + 1×24V2A + 1×12V3A + 2×12V1A
Key Selection Points: Long-term stable operation, strong anti-interference, low ripple
Scenario 3: Rehabilitation Therapy Room
Equipment: 3×physiotherapy units, 2×IF therapy devices, 2×rehabilitation trainers
Recommended Power Supply: 3×12V2A + 2×12V1.5A + 2×24V1.5A
Key Selection Points: Safety isolation, overload protection, medical standards compliance
Scenario 4: Portable/Home Medical
Equipment: 1×portable ECG, 1×home ventilator, 1×home oxygen concentrator, 1×blood pressure monitor
Recommended Power Supply: 1×12V1A + 1×12V3A/24V2A + 1×24V2.5A + 1×12V1A
Key Selection Points: Compact size, low noise, safe and reliable, meets home medical standards
XIII. Key Medical Power Parameters
| Parameter | Medical Grade Requirement | Consumer Grade | Difference Explanation |
|---|---|---|---|
| Ripple Noise | ≤150mVp-p (≤50mVp-p for some devices) | ≤200mVp-p | Medical devices require extremely high signal purity |
| Leakage Current | ≤200µA (stricter for BF/CF types) | ≤250µA | Patient safety protection |
| Isolation Grade | 2×MOPP | 1×MOPP | Dual patient protection |
| MTBF | ≥50,000 hours | ≥20,000 hours | Medical devices require higher reliability |
| EMC Standard | IEC 60601-1-2 | EN 55032 | Medical EMC is more stringent |
