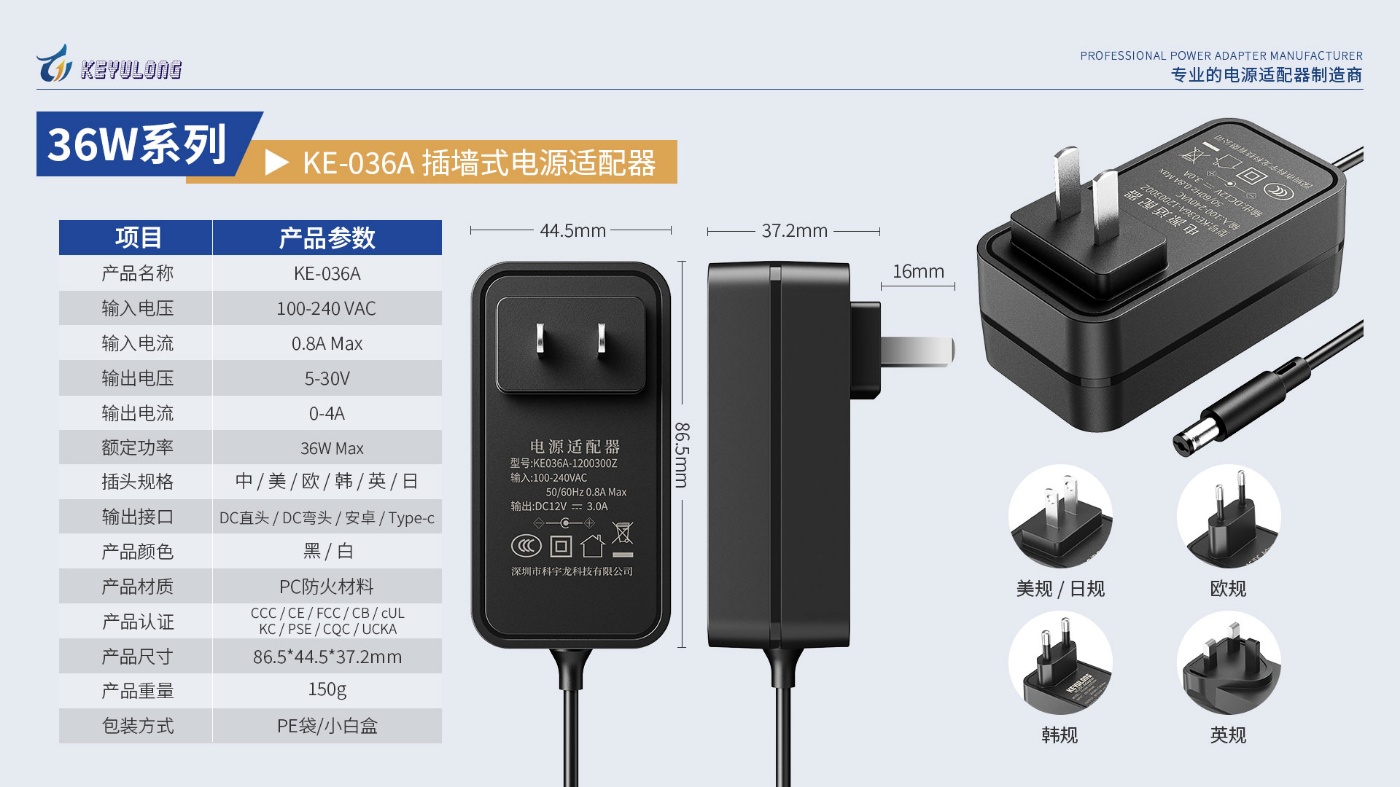

36W Series Power Adapter
Home36W Series Power AdapterDetails
36W power adapter, certified to CCC/CE/UL/FCC/UKCA/KC/PSE (meeting Chinese, US, European, South Korean, UK, and Japanese standards). Available output specifications: 12V3A, 12V2.5A, 5V4A, 24V1.5A, 29V1A, etc.
| Introduction to Conventional Classic Parameters (Contact us for more customizations) | ||||||
| Standard Customizable Parameters (More available upon request) | KE036A-12V3A | KE036A-12V2.5A | KE036A-5V4A | KE036A-24V1.5A | KE036A-29V1A | |
| Output | DC Voltage | 12V | 12V | 5V | 24V | 29V |
| Rated Current | 3A | 2.5A | 4A | 1.5A | 1A | |
| Current Range | 0-3A | 0-2.5A | 0-4A | 0-1.5A | 0-1A | |
| Rated Power | 36W | 30W | 20W | 36W | 29W | |
| DC Cable Length | Standard length 1.5m, customizable: 1m, 1.2m, 1.8m, 2m, etc. | |||||
| DC Connector | Standard : 5.5×2.1×10mm tuning fork straight type; customizable: 5.5×2.5mm, 4.0×1.7mm, 3.5×1.35mm straight/right-angle, exposed length, Type‑C, Android plug, aviation plug and other special interfaces. | |||||
| Input | Voltage Range | 100-240VAC | ||||
| Frequency Range | 50-60Hz | |||||
| Input Current | 0.8A | |||||
| Plug Type | China / US / EU / UK / Korea | |||||
| Protection | Overcurrent Protection | Built‑in overcurrent, overvoltage, short‑circuit protection | ||||
| Overvoltage Protection | Max 265VAC | |||||
| Short Circuit Protection | Auto‑recovery after fault removal | |||||
| Certifications & Compatibility | Product Certifications | CCC / CE / UL / FCC / PSE / KC / UKCA / RoHS / CB etc. | ||||
| Compatible Products | High‑quality products, strong compatibility, suitable for most devices | |||||
Comprehensive Product Application Table for 36W Power Adapter (including non‑motor and motor)
| Output Voltage | Output Current / Power | Applicable Product Types (including non‑motor and motor) | Typical Application Fields |
|---|---|---|---|
| 5V | 4A / 20W | Raspberry Pi 4B (requires 3A or more), multi‑port USB chargers, large digital photo frames, portable printers, external HDD enclosures, wireless charging pads, smart speakers, etc. (5V rarely used for motors) | Consumer Electronics, Smart Home, Maker Education |
| 12V | 2.5A / 30W | LCD monitors (19‑22 inches), mini PCs, NAS storage, LED strips (2‑3m), etc. (Low power margin, not recommended for motors) | PC Peripherals, LED Lighting |
| 12V | 3A / 36W | Surveillance NVR (4‑8ch), access control electric locks, large routers / core switches, enterprise‑grade routers, VPN gateways, etc.; Motor applications: Electric curtain motors, small DC fans, water pumps (aquarium pumps), electric toy motors, 3D printer extruder motors (start‑up current must be verified) | Security & Surveillance, Networking, Small Motor Drive |
| 24V | 1.5A / 36W | Industrial PLCs, LED strips (4‑5m), inkjet printers, scanners, pre‑amplifiers, etc.; Motor applications: Small stepper motors (e.g., 3D printer Z‑axis), automatic door lock motors, small blowers, model servos | Industrial Control, LED Lighting, Office Equipment, Light‑Load Motors |
| 29V | 1A / 29W | Li‑ion drill / screwdriver chargers (21V battery packs), vacuum cleaner Li‑ion battery chargers, electric scooter chargers, medical rehabilitation devices (e.g., physiotherapy devices), LED display modules, etc.; Motor applications: Linear actuators (small thrust), massage chair motors (low‑power models), electric sofas (single motor, light load) | Battery Charging, Healthcare, Light‑Load Linear Actuators |
※ Motor application notes: Motor start‑up current can be 2‑3 times the rated current. Ensure the adapter has sufficient margin (recommend motor rated power ≤ 70% of adapter power). Verify with actual testing before mass production. 29V linear actuators are often designed for 24‑29V wide voltage range – the 29V/1A model or a higher‑power version is recommended.
Shenzhen KEYULONG Technology Co., Ltd. (KEYULONG Technology) was founded in 2011, an integrated manufacturer covering R&D, design, production, sales and service. ISO 9001 certified. We focus on 5W‑120W mid‑to‑high end power adapters, product lines include “matching chargers (5V1A/5V2A, etc.), QC/PD fast chargers, GaN fast chargers, wall‑plug adapters, desktop adapters”. We provide “high reliability, full compliance, fast customization” solutions, widely used in security & surveillance, smart home, medical equipment, LED lighting, drones and other fields.
15+ years of power experience · Serving 3000+ global companies · Make every watt more valuable
